Features
- Emergency power supply by the transmission device
- Secured configuration via the supply tool of the transmission device

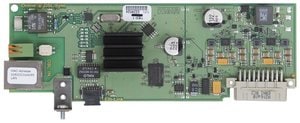

DSL Modem TED 1
The TED 1 module is an emergency-powered DSL modem for the DSL standards Annex B and Annex J. The transmission device has full control over the modem at all times and can restart it if necessary or switch it off in the event of a power failure, for example. The DSL line is connected via RJ45 or alternatively via terminal technology. The module has status LEDs for DSL sync/training and online status.
- Part-No.:
- 789813
Technical Data
- Rated voltage
- V AC
- Zertifizierung
- Leistungsaufnahme und DAS-Ausgang unter 48 V
- Leistungsaufnahme und DAS-Ausgang unter 24 V
- DAS Ausgangsspannung (nur positive Sicherheit)
- Eingang der Spannungsversorgung
- Spannungsfernbedienungseingang mit Spannungsemission
- Spannung_Fernbedienungseingang mit Stromunterbrechung
- Rated voltage
- Rated frequency
- Nominal frequency
- Hz
- Rated current
- Operating voltage
- Operating voltage
- V DC
- Operating voltage
- via base group (Typical current consumption 340 mA at 12V)
- Output voltage
- Rated current
- Output voltage
- Output current
- Output current
- Quiescent current
- Quiescent current @ 12 V DC
- Current consumption
- Current consumption
- Current consumption @ 12 V DC
- Current consumption @ 24 V DC
- Alarm current @ 12 V DC
- Current consumption for ext. devices
- A
- Power consumption
- W
- Battery
- Battery capacity
- Resolution
- Contact load relay
- Contact load
- Connection terminal
- Holding power
- N
- Cable entry
- Application temperature
- Ambient temperature
- Storage temperature
- Ambient conditions
- Air humidity
- Air humidity
- < 95 %
- Type of protection
- Housing
- Material
- Color
- Color front plate
- Height
- Weight
- approx. 90 g
- Weight
- FO-Connector
- Cable length
- m
- Cable
- Dimensions
- W: 55 mm H: 160 mm D: 20 mm
- Declaration of Performance
- Specification
- Approval
- VdS 2465(-1)
- Voltage supply
- Ausgangsspannung typisch
- Power output
- W
- Stromaufnahme max.
- Akkumulator
- Inputs
- Outputs
- Luftfeuchtigkeit
- Montageart
- Schaltleistung max.
- Schraubklemmen Drahtquerschnitt max.
- Stromaufnahme typisch
- Versorgungsspannung Alarmgeberkreise
- Ausgangsstrom max.
- Versorgungsspannung
- V
- Versorgungsspannung_a
- Stromaufnahme bei 24 V
- Nennausgangsleistung
- min. Ausgangsstrom
- max. Ausgangsstrom
Additional information
Delivery without antenna. Product recommendation: Outdoor antenna on mounting bracket (item no.: 789818) or magnetic holding antenna (item no. 789816).
DSL Standard: ADSL, ADSL2, ADSL2+, VDSL1, VDSL2, Annex B,
Annex J, Vectoring supported
Interfaces
RJ45 1x connection to DSL (splitter)
Terminal connection 1x connection to DSL (a/b)
