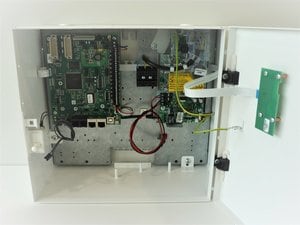

The alarm transmission device TAS-Link IV is used for the safe transmission of danger and fault messages via all common transmission networks.
In addition to its high compatibility with various hazard detection systems and emergency call service control centres as well as its high reliability, the TAS-Link IV is also characterised by innovative concepts.
By using the latest processor technology, the transmission device is able to take on features that previously required a separate router, such as IPsec. The basic module of the TAS-Link IV has 8 line inputs as well as 2 configurable and 2 reserved outputs and can be expanded to up to 128 inputs as well as up to 122 outputs by connecting additional expansion modules (depending on the combination). Standard-compliant remote access can be implemented.
The associated power supply unit NT560-12/E is a switched-mode power supply unit in PCB design with protection against accidental contact and a regulated Output voltage of 12V DC with 2A. The power supply combines the functions of power supply, battery charging and battery monitoring.
