O2T/F multisensor fire detector IQ8Quad with isolator

802383 | O2T/F multisensor fire detector IQ8Quad with isolator

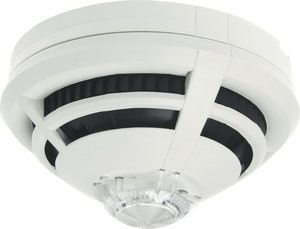

In addition to smoke detection with the conventional O²T multisensor technology, the detector is provided with a built-in flash lamp.

Part-No.:
802383
Approval:
VdS

Features

Detection

  • The reliable O²T multisensor principle for consistent response performance at the highest level of security against false alarms
  • Individual control of the beacon


Flash lamp

  • Loop powered - no need for external power supply
  • No additional short address
  • Automatic synchronization of various IQ8Quad alarm signaling devices
  • High flash energy

Technical Data

Common technical data:
Leistungserklärung
Rated voltage
V AC
Rated frequency
Rated current
Output current
Battery capacity
Operating voltage
8 ... 42 V DC

Operating voltage
V DC
Operating voltage
Quiescent current
Betriebsspannung (EN 54-17)
Betriebsspannung Selbsttest
Lichtquelle
Leuchtfarbe
Luftgeschwindigkeit
Lüfterlautstärke
Ruhestrom @ BMZAkku
Anwendungstemperatur Selbsttest

Quiescent current @ 9 V DC
μA
Quiescent current @ 12 V DC
Quiescent current @ 19 V DC
75 μA
Quiescent current @ 24 V DC
Quiescent current @ FACP battery
approx. 400 μA
Quiescent current @ FACP battery
Quiescent current
μA
Current consumption
Current consumption
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Starting current
mA
Current consumption in the case of failure
mA
Current consumption testmode
mA
Alarm current
10 mA ... 20 mA
Alarm current
Alarm current @ 9 V DC
mA
Alarm current @ 12 V DC
Alarm current @ 24 V DC
mA
Alarm current @ 24 V DC
Alarm current w/o communication curtain
mA
Power consumption
Current consumption for ext. devices
A
Testing capacity
Battery charging
Heat detector response threshold
Load factor
2
Contact load relay
Contact load
Sound level
dB
Sound level @ 12 V DC
Sound level @ 24 V DC
Sound level
No. of detector/zone
Circuit
Display
Operation indicator
Alarm display
Fault display
Frequency of flash
Lighting energy
approx. 3 Y
Flash color
Luminous intensity
max. 15.8 cd peak / 2.63 cd effective


Signal flashing lamp
red
Range
Connection terminal
CO pre-alarm
ppm
CO alarm
ppm
Area to be monitored
110 m²
Height to be monitored
12 m
Air velocity
0 m/s ... 25,4 m/s
Sensitivity
Application temperature
-20 °C ... 65 °C
Ambient temperature
Storage temperature
-25 °C ... 75 °C
Air humidity
< 95 %
Air humidity
Type of protection
IP43 (with base + options)

Protection class
Ex. protection
Category
Housing
Material
ABS plastic

Installation
Signal Range
Mounting height wall
Room width
Category ceiling
Mounting height ceiling
Room diameter
Color
white, similar to RAL 9010

Weight
approx. 145 g
Weight
Optisches_Signalbild
Lebensdauer_optisch
Drehfrequenz
Abmessungen
Content
Cable length
m
Maximum sensor length
m
Detector specification
EN 54-7:2006/-5 B:2000/ -17:2005, CEA 4021
DIBt approval
Specification

Cable diameter
mm
Cable entry
Maximum tube length
Dimensions
Ø: 117 mm H: 59 mm

Ø: 117 mm H: 67 mm (incl. base)
Length
Declaration of Performance
DoP-20193130701
Konformität
