Optical Smoke Detector ES Detect with relay contact, 48 V DC operation

800361.10 | Optical Smoke Detector ES Detect with relay contact, 48 V DC operation

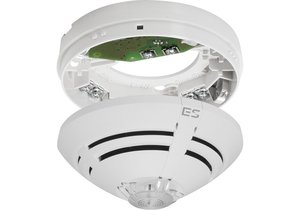

The threshold value detector with relay contact 800361.10 for object monitoring, comprises an optical smoke detector 800371 from the ES Detect Series and a detector base 805592 which enables a direct connection to a 48 V DC power supply. The detector therefore does not need to be operated in connection with a fire alarm control panel.

If the detector detects a fire alarm, a floating relay contact activates to transmit the alarm. The relay contact is normally closed (NC) by default, but can also be configured as normally open (NO) with a solder strap on the circuit board base.

The smoke detector of Series ES Detect used in the detector base can be reset manually or automatically by a short interruption (4 seconds) of the detector voltage.

A typical use for this detector is to monitor mobile communication stations, e.g. BTS base transceiver stations.

Take note, the detector base with relay output for ES Detect 805592 is included in the scope of delivery!

Part-No.:
800361.10

Features

System benefits:

  • Optimally matched to the ES Line system
  • With multisensor detectors for the detection of all fires, even under the most difficult operating conditions
  • Up to 30 detectors per detection group

Reliable detection:

  • Uniform response sensitivity of the detector for all different types of fire for the multisensor detectors
  • Large distance between signal and interference magnitudes due to special sensor and electronics design for suppressing electromagnetic influences
  • Automatic adaptation to varying environmental influences
  • Electronic compensation also called drift-compensation of long-term influences of contamination or aging

Reliable false alarm suppression:

  • High reliability against false alarms by temporal evaluation of different sensor criteria, with built-in insect screen and sealed against rear air flow entry
  • Exclusion of signal forms not typical of fires through special filter algorithms
  • Automatic self-monitoring of the detector electronics
  • Automatic self-monitoring of sensors for function and condition

Maintenance:

  • Designation of the heat detector by a black ring on the light pipe
  • Hours of operation, alarm and fault counter in each detector
  • Operation data retrieval of all detectors of a group with standard service PC and field bus interface
  • Detector LED for alarm display and as an identification display in the service (for maintenance with 8000 tools)

Wide range of accessories:

  • Standard socket and relay base
  • Socket adapter for ceiling installation
  • Dust caps optional for fire detectors and detector base
  • Kit for suspended mounting

Technical Data

Common technical data:
Leistungserklärung
Rated voltage
V AC
Rated frequency
Rated current
Output current
Battery capacity
Operating voltage
42 ... 58 V DC

Operating voltage
V DC
Operating voltage
Quiescent current
approx. 0,051 mA
Lichtquelle
Leuchtfarbe

Quiescent current @ 9 V DC
μA
Quiescent current @ 12 V DC
Quiescent current @ 19 V DC
μA
Quiescent current @ 24 V DC
Quiescent current @ FACP battery
Quiescent current @ FACP battery
Quiescent current
μA
Current consumption
max. 9 mA
Current consumption
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Starting current
mA
Current consumption in the case of failure
mA
Current consumption testmode
mA
Alarm current
Alarm current
Alarm current @ 9 V DC
9 mA
Alarm current @ 12 V DC
Alarm current @ 24 V DC
mA
Alarm current @ 24 V DC
Alarm current w/o communication curtain
mA
Power consumption
Current consumption for ext. devices
A
Testing capacity
Battery charging
Heat detector response threshold
Load factor
Contact load relay
30 V DC / 1A, 60 V DC / 0,45 A
Contact load
Sound level
dB
Sound level @ 12 V DC
Sound level @ 24 V DC
Sound level
No. of detector/zone
Circuit
Display
Operation indicator
Alarm display
Fault display
Frequency of flash
Lighting energy
Flash color
Luminous intensity


Signal flashing lamp
Range
Connection terminal
CO pre-alarm
ppm
CO alarm
ppm
Area to be monitored
110 m²
Height to be monitored
12 m
Air velocity
0 m/s ... 25,4 m/s
Sensitivity
Application temperature
-20 °C ... 72 °C
Ambient temperature
Storage temperature
-25 °C ... 75 °C
Air humidity
< 95 % (non-condensing)
Air humidity
Type of protection
IP 40 with base, up to IP 43 with base and option

Protection class
Ex. protection
Category
Housing
Material
ABS

Installation
Signal Range
Mounting height wall
Room width
Category ceiling
Mounting height ceiling
Room diameter
Color
white, similar to RAL 9010

Weight
approx. 110 g (approx. 190 g incl. base)
Weight
Optisches_Signalbild
Lebensdauer_optisch
Drehfrequenz
Abmessungen
Content
Cable length
m
Maximum sensor length
m
Detector specification
EN 54-7
DIBt approval
Specification

Cable diameter
mm
Cable entry
Maximum tube length
Dimensions
Ø: 117 mm H: 49 mm (incl. base 62 mm)

Length
Declaration of Performance
Konformität

Accessories

767800 Assembly bracket

805590 Standard IQ8Quad detector base

805591 Detector base with IQ8Quad relay contact

Additional information

Replacement for Part No. 761306

The detector Part No. 800361.10 can be ordered only in the grid of 5 pieces (eg. 5, 10, 15, 20 etc.)

Scope of delivery

Without detector base

Product Data Sheet

Version: 2024-11

Language:
English
Doc extension:
pdf
