Features
- 4 pulsed LEDs
- Power-saving compact indicator
- Powered loop alarm device
- Viewing angle 180°

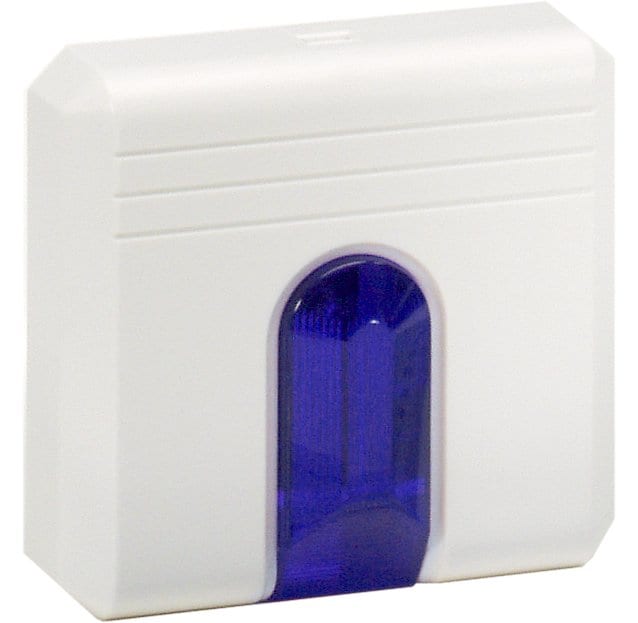

Remote indicator esserbus-PLus f. detector Series 9200/IQ8Quad, blue lens
A blue prism is illuminated by 4 pulsed LEDs to optimze energy consumption. Connection by 3/4 wire cable to detector base. For special applications such as indication of assaults on jailers in any prison cell of penitentiaries and correctional facilities.
- Part-No.:
- 801825
Technical Data
- Common technical data:
- Leistungserklärung
- Rated voltage
- V AC
- Rated frequency
- Rated current
- Output current
- Battery capacity
- Operating voltage
- 14 ... 42 V DC
- Operating voltage
- V DC
- Operating voltage
- Quiescent current
- Lichtquelle
- Leuchtfarbe
- Quiescent current @ 9 V DC
- μA
- Quiescent current @ 12 V DC
- approx. 0,007 mA
- Quiescent current @ 19 V DC
- μA
- Quiescent current @ 24 V DC
- Quiescent current @ FACP battery
- Quiescent current @ FACP battery
- Quiescent current
- μA
- Current consumption
- Current consumption
- Current consumption @ 12 V DC
- Current consumption @ 24 V DC
- Starting current
- mA
- Current consumption in the case of failure
- mA
- Current consumption testmode
- mA
- Alarm current
- Alarm current
- approx. 150 μA
- Alarm current @ 9 V DC
- mA
- Alarm current @ 12 V DC
- Alarm current @ 24 V DC
- mA
- Alarm current @ 24 V DC
- Alarm current w/o communication curtain
- mA
- Power consumption
- Current consumption for ext. devices
- A
- Testing capacity
- Battery charging
- Heat detector response threshold
- Load factor
- Contact load relay
- Contact load
- Sound level
- dB
- Sound level @ 12 V DC
- Sound level @ 24 V DC
- Sound level
- No. of detector/zone
- Circuit
- Display
- Operation indicator
- Alarm display
- Fault display
- Frequency of flash
- 1,5 Hz
- Lighting energy
- Flash color
- Luminous intensity
- Signal flashing lamp
- Range
- Connection terminal
- 0.6 mm ... max. 1.5 mm²
- CO pre-alarm
- ppm
- CO alarm
- ppm
- Area to be monitored
- Height to be monitored
- Air velocity
- Sensitivity
- Application temperature
- Ambient temperature
- -25 °C ... 70 °C
- Storage temperature
- -35 °C ... 85 °C
- Air humidity
- < 95 %
- Air humidity
- Type of protection
- IP 42
- Protection class
- Ex. protection
- Category
- Housing
- ABS plastic
- Material
- Installation
- Signal Range
- Mounting height wall
- Room width
- Category ceiling
- Mounting height ceiling
- Room diameter
- Color
- white, similar to RAL 9010
- Weight
- approx. 60 g
- Weight
- Optisches_Signalbild
- Lebensdauer_optisch
- Drehfrequenz
- Abmessungen
- Content
- Cable length
- m
- Maximum sensor length
- m
- Detector specification
- DIBt approval
- Specification
- Cable diameter
- mm
- Cable entry
- Maximum tube length
- Dimensions
- W: 85 mm H: 82 mm D: 27 mm
- Length
- Declaration of Performance
- Konformität
Additional information
Automatic Fire Detectors Series 9200/IQ8Quad
- Standard detector base Part No. 781590 or base Part No. 801593 required for Series 9200 detectors
- Standard detector base Part No. 805590 required for Series IQ8Quad detectors
- Max. 3 indicators per detector / max. 2 detectors per indicator
- Max. 103 remote indicators per analog loop
- Do not connect remote indicator to detector base Part No. 781593
- Cable length to detector base or voltage supply max. 100 m
Manual Call Point Series 9200
- Electronic module Part No. 804472.10 (for activating a LED remote indicator)
