Features
- 4 pulsed LEDs
- Power-saving compact indicator
- Viewing angle 180°

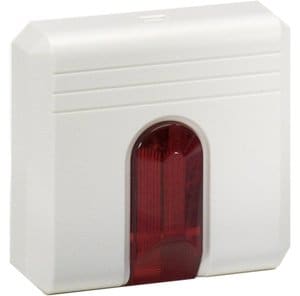

Remote indicator for Series 9000 / ES Detect, red lens
Red prism is illuminated by 4 pulsed LEDs to optimize energy consumption. Connection by 3/4 wire cable to detector base.
- Part-No.:
- 781804
Technical Data
- Common technical data:
- Leistungserklärung
- Rated voltage
- V AC
- Rated frequency
- Rated current
- Output current
- Battery capacity
- Operating voltage
- 6 ... 12 V DC
- Operating voltage
- V DC
- Operating voltage
- Quiescent current
- Lichtquelle
- Leuchtfarbe
- Quiescent current @ 9 V DC
- μA
- Quiescent current @ 12 V DC
- approx. 0,005 mA
- Quiescent current @ 19 V DC
- μA
- Quiescent current @ 24 V DC
- Quiescent current @ FACP battery
- Quiescent current @ FACP battery
- Quiescent current
- μA
- Current consumption
- Current consumption
- Current consumption @ 12 V DC
- Current consumption @ 24 V DC
- Starting current
- mA
- Current consumption in the case of failure
- mA
- Current consumption testmode
- mA
- Alarm current
- Alarm current
- approx. 9 mA @ 12 V DC
- Alarm current @ 9 V DC
- mA
- Alarm current @ 12 V DC
- Alarm current @ 24 V DC
- mA
- Alarm current @ 24 V DC
- Alarm current w/o communication curtain
- mA
- Power consumption
- Current consumption for ext. devices
- A
- Testing capacity
- Battery charging
- Heat detector response threshold
- Load factor
- Contact load relay
- Contact load
- Sound level
- dB
- Sound level @ 12 V DC
- Sound level @ 24 V DC
- Sound level
- No. of detector/zone
- Circuit
- Display
- Operation indicator
- Alarm display
- Fault display
- Frequency of flash
- 1,5 Hz
- Lighting energy
- Flash color
- Luminous intensity
- Signal flashing lamp
- Range
- Connection terminal
- CO pre-alarm
- ppm
- CO alarm
- ppm
- Area to be monitored
- Height to be monitored
- Air velocity
- Sensitivity
- Application temperature
- Ambient temperature
- -25 °C ... 70 °C
- Storage temperature
- -35 °C ... 85 °C
- Air humidity
- < 95 %
- Air humidity
- Type of protection
- IP 42
- Protection class
- Ex. protection
- Category
- Housing
- ABS plastic
- Material
- Installation
- Signal Range
- Mounting height wall
- Room width
- Category ceiling
- Mounting height ceiling
- Room diameter
- Color
- white, similar to RAL 9010
- Weight
- approx. 60 g
- Weight
- Optisches_Signalbild
- Lebensdauer_optisch
- Drehfrequenz
- Abmessungen
- Content
- Cable length
- m
- Maximum sensor length
- m
- Detector specification
- DIBt approval
- Specification
- Cable diameter
- mm
- Cable entry
- Maximum tube length
- Dimensions
- W: 85 mm H: 82 mm D: 27 mm
- Length
- Declaration of Performance
- Konformität
Additional information
Operation only with conventional automatic fire detectors Series 9000 and
standard detector base Part No. 781590.
Detectors Series ES Detect:
- Detector base 805590 required.
- Max. 4 indicators per detector / max. 3 detectors per indicator.
- Max. 4 detector per indicator per detector zone.
- Adapter module (Part No. 781487) required
- Max. 3 indicators per detector / max. 3 detectors per indicator
- Max. 60 remote indicators per zone (with max. 20 detectors)
- each additional detector, decrease 3 remote indicators (e.g. 21 detectors -> max. 57 remote indicators 30 detectors -> max. 30 remote indicators)
