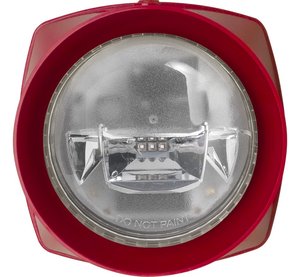

IQ8Alarm Plus/FSpSo VAD with sound/speech, red/white, customized version

IQ8Alarm Plus/FSpSo VAD with sound/speech, red/white, customized version

Same as 807372RW, but with individual texts and/or sounds. The maximum recording time per device is 169 seconds.Addressable, completely bus supplied and short circuit / open circuit resilient combined voice sounder and Visual Alarm Device (VAD) in compliance with EN 54‑3 & EN 54‑23 with integrated voice messages, signaling tones and white light flash for acoustic and optical alarm signaling.

With up to 20 different programmable signaling tones including DIN tone in accordance with DIN 33404 Part 3.

Speech alarm with 5 pre-programmed alarm messages in 5 different languages.

The volume can be set to 8 different levels.

Selection or combination of speech messages and signaling tones as well the volume control are carried out via the tools 8000 programming software

The optical signaling device is suitable for square signal ranges W‑2.4‑5 to W‑3.6‑8.

The optical signal range is adjustable in 6 sizes via tools 8000.

Signaling device with flat base, suitable for wall mounting.

Optionally, IP base Part No. 806202 with side cable entry and weatherproof protection can be installed.

As part of our commitment to offering benchmark customer support, we have provided an online tool designed to help you easily identify and select the right solution for your specific application needs: "Maxpector VAD Selection Guide - IQ8Alarm Plus".

Identify the correct device in line with EN54-23. To help identify your Visual Alarm Device (VAD) requirements in line with the EN54-23 standard, we have developed an easy-to-use online device selection guide. Simply enter the room dimensions, flash frequency, light color and optional features e.g. Flash/Sound or Flash/Speech and the tool will help you estimate the number of VADs required for your space.

This useful selection guide includes the intelligent IQ8Alarm Plus devices, providing a one-stop-shop for VAD selection. Link: https://esser.maxpector.com/

Part-No.:: 807372RW.SV99
Approval:: VdS

Features

Completely bus supplied alarm device
Powered loop compatible
Low power consumption
Up to 13 alarm devices for each powered loop
Each alarm device has built-in isolator
Synchronous trigger

Optical alarm properties:

EN 54-23 compliant
W category
Signal range up to 8.0 m room width for wall mounting
Room size configurable via tools 8000

Acoustic alarm properties:

EN 54-3 compliant
High acoustic pressure
Volume programmable in 8 steps via tools 8000
20 different signaling tones, including DIN tone
Multilingual speech alarm in 5 different languages
Alarm signaling, evacuation, and test alarm can each be programmed in different languages
Speech alarm, 5 pre-programmed alarm texts and other country-typical alarm signals

Technical Data

Optic
Load factor optic: 3 ^*1 ... 7,9
Frequency of flash: 0,5 Hz ^*1 /1 Hz
Lighting energy
Flash color: white
Luminous intensity: aaprox. 6,6 cd eff. ^*1 / max. 17 cd eff. @ W-3,6-8


Signal Range: W-2,4-5 / 60 m³ ^*1(factory) … W-3,6-8 / 230 m³
Mounting: Wall
Specification: EN 54-23: 2010 / -17: 2005
Acoustic
Load factor acoustic: 4
Sound level: 90 db(A) +/- 2 dB @ 1 m / @ 90° / @ DIN tone, for speech & tone
: 97 db(A) +/- 2 dB @ 1 m / @ 90° / @ DIN tone, only tone
Sound level @ 12 V DC
Sound level
Mounting
Specification: EN 54-3: 2001 / A1: 2002 / A2 : 2006 / -17: 2005
: EN 54-3 Sounder
: EN 54-3 Voice Sounder
Max. Input Voltage (U_i): V DC
Max. Input current (I_i): mA
Max. Output current (I_o): mA
Max. internal capacity (Ci)
EC-type examination certificate
Ex-category
Ex. protection

Specification
Common technical data:
Operating voltage: 14 ... 42 V DC (via powered loop)

Operating voltage: V DC
Operating voltage
Quiescent current: mA

Quiescent current @ 9 V DC: μA
Quiescent current @ 12 V DC
Quiescent current @ 19 V DC: 55 μA
Quiescent current @ FACP battery: approx. 300 μA @ 42 V
Quiescent current @ FACP battery
Quiescent current: μA
Current consumption
Current consumption
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Alarm current
Alarm current
Alarm current @ 9 V DC: mA
Alarm current @ 12 V DC
Alarm current @ 24 V DC: mA
Alarm current @ 24 V DC
Alarm current w/o communication curtain: mA
Power consumption
Loadfactor total: 7 ^*1 ... 11,9
Load factor
Connection terminal: max. 1,5 mm² (AWG 30-14)
Area to be monitored
Height to be monitored
Air velocity
Application temperature
Ambient temperature: -10 °C ... 55 °C
Storage temperature: -25 °C ... 75 °C
Air humidity: < 95 % (non-condensing)
Air humidity
Type of protection: IP 43 ^*2
: IP 56 with IP base 806202 ^*3
Housing: Polycarbonate plastic
Material

Installation
Mounting height wall
Category
Room width
Category ceiling
Mounting height ceiling
Room diameter
Mounting height: m
Color: red, similar to RAL 3020
: Calotte: translucent / partially frosted
Weight: approx. 300 g (with base)
Alarm signal specification
DIBt approval
Cable diameter: mm
Cable entry
Dimensions: Ø: 112 mm D: 78 mm
: Ø: 112 mm D: 93 mm (with IP base)

Declaration of Performance: DoP-21431171215

Accessories

806202 IP base, red

Additional information

When using the flat IP base the db output reduces by an average of 3 dB.

*1 Factory setting, configuration with service- and programming software tools 8000.

*2 IP 21C acc. EN 54-3 / -23

*3 Do not use the base for acoustic alarm applications in compliance with EN 54-3

The factory settings for EN 54-23 signal ranges can be changed with FACP FlexES Control and programming software tools 8000 from version V1.24.

To help define your addressable Visual Alarm Devices (VADs) requirements in line with the EN54-23 standard, we have developed an easy to use online guide. Simply enter the room dimensions, flash frequency and light color and the guide will help your device selection and project planning: https://esser.maxpector.com/

When ordering, please note the "Order Information for Alarm Signaling Devices IQ8Quad and IQ8Alarm Plus” and fill in the order form "Order Form for IQ8 Customized Languages (xy.SV99)” printed in the appendix. Service and costs for recording studio upon request.

Cancellations or returns are not possible.
