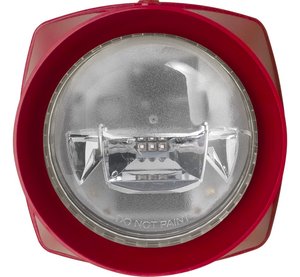

IQ8Alarm Plus/FSo visual alarm device with sound, red/white

807224RW | IQ8Alarm Plus/FSo visual alarm device with sound, red/white

Addressable, completely bus supplied and short circuit / open circuit resilient combined fire alarm sounder and Visual Alarm Device (VAD) in compliance with EN 54-3 & EN 54-23 with integrated signaling tones and white light flash for acoustic and optical alarm signaling.

With up to 20 different programmable signaling tones including DIN tone in accordance with DIN 33404 Part 3.

The volume can be set to 8 different levels.

The optical signaling device is suitable for square signal ranges W-2.4-5 to W-3.6-8.

The optical signal range is adjustable in 6 sizes via tools 8000.

Signaling device with flat base, suitable for wall mounting.

Optionally, IP base Part No. 806202 with side cable entry and weatherproof protection can be installed.

Part-No.:
807224RW
Approval:
VdS

Features

  • Completely bus supplied alarm device
  • Powered loop compatible
  • Low power consumption
  • Up to 21 alarm devices for each powered loop
  • Each alarm device has built-in isolator
  • Synchronous trigger


Optical alarm properties:
  • EN 54-23 compliant
  • W category
  • Signal range up to 8.0 m room width for wall mounting
  • Room size configurable via tools 8000


Acoustic alarm properties:
  • EN 54-3 compliant
  • High acoustic pressure
  • Volume programmable in 8 steps via tools 8000
  • 20 different signaling tones, including DIN tone

Technical Data

Optic
Load factor optic
3 *1 ... 7,9
Frequency of flash
0,5 Hz *1 /1 Hz
Lighting energy
Flash color
white
Luminous intensity
approx. 6,6 cd eff. *1 / max. 17 cd eff. @ W-3,6-8


Signal Range
W-2,4-5 / 60 m³ (factory) … W-3,6-8 / 230 m³
Mounting
Wall
Specification
EN 54-23: 2010 / -17: 2005
Acoustic
Load factor acoustic
1,5 *1 / 3
Sound level
91 *1 / 97 dB (A) +/- 2 dB @ 1 m / @ 90° angle / @ DIN Tone

Sound level @ 12 V DC
Sound level
Mounting
Specification
EN 54-3: 2001 / A1: 2002 / A2 : 2006 / -17: 2005

EN 54-3 Sounder

Max. Input Voltage (Ui)
V DC
Max. Input current (Ii)
mA
Max. Output current (Io)
mA
Max. internal capacity (Ci)
EC-type examination certificate
Ex-category
Ex. protection

Specification
Common technical data:
Operating voltage
14 ... 42 V DC (via powered loop)

Operating voltage
V DC
Operating voltage
Quiescent current
mA

Quiescent current @ 9 V DC
μA
Quiescent current @ 12 V DC
Quiescent current @ 19 V DC
55 μA
Quiescent current @ FACP battery
approx. 300 μA @ 42 V
Quiescent current @ FACP battery
Quiescent current
μA
Current consumption
Current consumption
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Alarm current
Alarm current
Alarm current @ 9 V DC
mA
Alarm current @ 12 V DC
Alarm current @ 24 V DC
mA
Alarm current @ 24 V DC
Alarm current w/o communication curtain
mA
Power consumption
Loadfactor total
4,5 *1 ... 10,9
Load factor
Connection terminal
max. 1,5 mm² (AWG 30-14)
Area to be monitored
Height to be monitored
Air velocity
Application temperature
Ambient temperature
-10 °C ... 55 °C
Storage temperature
-25 °C ... 75 °C
Air humidity
< 95 % (non-condensing)
Air humidity
Type of protection
IP 43 *2

IP 56 with IP base 806202 *3
Housing
Polycarbonate plastic
Material

Installation
Mounting height wall
Category
Room width
Category ceiling
Mounting height ceiling
Room diameter
Mounting height
m
Color
red, similar to RAL 3020

Calotte: translucent / partially frosted
Weight
approx. 300 g (with base)
Alarm signal specification
DIBt approval
Cable diameter
mm
Cable entry
Dimensions
Ø: 112 mm D: 78 mm

Ø: 112 mm D: 93 mm (with IP base)

Declaration of Performance
DoP-21431171215

Accessories

806202 IP base, red

Additional information

When using the flat IP base the db output reduces by an average of 3 dB.

*1 Factory setting, configuration with service- and programming software tools 8000.

*2 IP 21C acc. EN 54-3 / -23

*3 Do not use the base for acoustic alarm applications in compliance with EN 54-3

  • The factory settings for EN 54-23 signal ranges can be changed with FACP FlexES Control and programming software tools 8000 from version V1.24.

As part of our commitment to offering benchmark customer support, we have provided an online tool designed to help you easily identify and select the right solution for your specific application needs: "Maxpector VAD Selection Guide - IQ8Alarm Plus".

Identify the correct device in line with EN54-23. To help identify your Visual Alarm Device (VAD) requirements in line with the EN54-23 standard, we have developed an easy-to-use online device selection guide. Simply enter the room dimensions, flash frequency, light color and optional features e.g. Flash/Sound or Flash/Speech and the tool will help you estimate the number of VADs required for your space.

This useful selection guide includes the intelligent IQ8Alarm Plus devices, providing a one-stop-shop for VAD selection. Link: https://esser.maxpector.com/

Product Data Sheet

Version: 2024-11
