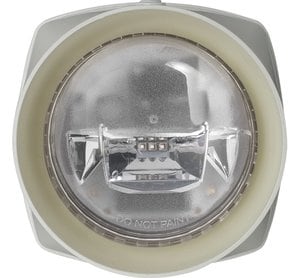

Addressable, completely bus supplied and short circuit / open circuit resilient Visual Alarm Device (VAD) compliant with EN 54-23, with white light flash, for optical alarm signaling.
The optical signaling device is suitable for square signal ranges W-2.4-5.0 to W-3.6-8.
The optical signal range is adjustable in 6 sizes via tools 8000.
Signaling device with flat base, suitable for wall mounting.
Optionally, IP base Part No. 806201 with side cable entry and weatherproof protection can be installed.
806201 IP base, white
*1 Factory setting, configuration with service- and programming software tools 8000.
*2 IP 21C acc. EN 54-3 / -23
*3 Do not use the base for acoustic alarm applications in compliance with EN 54-3
Replacement for Part No. 807214.
As part of our commitment to offering benchmark customer support, we have provided an online tool designed to help you easily identify and select the right solution for your specific application needs: "Maxpector VAD Selection Guide - IQ8Alarm Plus".
Identify the correct device in line with EN54-23. To help identify your Visual Alarm Device (VAD) requirements in line with the EN54-23 standard, we have developed an easy-to-use online device selection guide. Simply enter the room dimensions, flash frequency, light color and optional features e.g. Flash/Sound or Flash/Speech and the tool will help you estimate the number of VADs required for your space.
This useful selection guide includes the intelligent IQ8Alarm Plus devices, providing a one-stop-shop for VAD selection. Link: https://esser.maxpector.com/
Version: 02.2018
