Sounder N120

766424 | Sounder N120

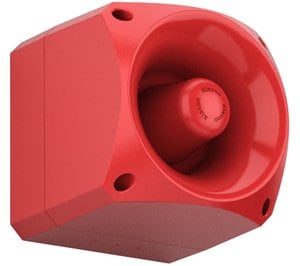

Sounder acc. EN 54-3 with 64 selectable tones and three independently controllable alarm levels. The volume can be adjusted in 20 dB steps by potentiometer. The configuration takes place via a 6-way DIP switch.

Part-No.:
766424
Approval:
VdS

Features

  • 119 dBA in 1 m with DIN sound
  • 64 tones
  • 20 dBA volume control
  • 3 remotely switchable alarm levels
  • Adjustable volume
  • Wall and ceiling mounting
  • High protection class
  • Ideal for industrial applications
