Features
- EN 54-23 compliant
- C & W category
- Synchronous flash trigger
- Up to 6.2 m room width for wall mounting
- Up to 9.4 m room diameter for ceiling mounting

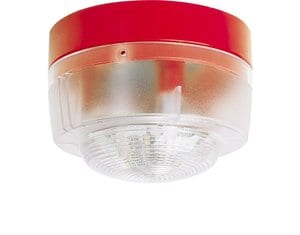

Optical alarm signaling device EN 54-23 cat. W+C, red flash
Optical signaling device compliant with EN 54-23 for wall and ceiling mounting with red lamp color and flat base. The signaling device is suitable for square signal ranges W-2.4-6.7 and cylindrical signal ranges C-3-9.4 / C-6-8.2.
To help define your conventional Visual Alarm Devices (VADs) requirements in line with the EN54-23 standard, we have developed an easy to use online guide. Simply enter the room dimensions and ambient light conditions and the guide will help your device selection: https://www.kac.co.uk/device_estimator/
- Part-No.:
- CWST-RR-S5
- Approval:
- VdS
Technical Data
- Common technical data:
- Leistungserklärung
- Rated voltage
- V AC
- Rated frequency
- Rated current
- Output current
- Battery capacity
- Operating voltage
- 12 ... 29 V DC
- Operating voltage
- V DC
- Operating voltage
- Quiescent current
- Lichtquelle
- Leuchtfarbe
- Quiescent current @ 9 V DC
- μA
- Quiescent current @ 12 V DC
- Quiescent current @ 19 V DC
- μA
- Quiescent current @ 24 V DC
- Quiescent current @ FACP battery
- Quiescent current @ FACP battery
- Quiescent current
- μA
- Current consumption
- Current consumption
- Current consumption @ 12 V DC
- Current consumption @ 24 V DC
- approx. 37 mA
- Starting current
- mA
- Current consumption in the case of failure
- mA
- Current consumption testmode
- mA
- Alarm current
- Alarm current
- Alarm current @ 9 V DC
- mA
- Alarm current @ 12 V DC
- Alarm current @ 24 V DC
- mA
- Alarm current @ 24 V DC
- Alarm current w/o communication curtain
- mA
- Power consumption
- Current consumption for ext. devices
- A
- Testing capacity
- Battery charging
- Heat detector response threshold
- Load factor
- Contact load relay
- Contact load
- Sound level
- dB
- Sound level @ 12 V DC
- Sound level @ 24 V DC
- Sound level
- No. of detector/zone
- Circuit
- Display
- Operation indicator
- Alarm display
- Fault display
- Frequency of flash
- 0,5 Hz
- Lighting energy
- Flash color
- red
- Luminous intensity
- max. 56 cd effective
- Signal flashing lamp
- Range
- Connection terminal
- 0.5 ... 2.5 mm2
- CO pre-alarm
- ppm
- CO alarm
- ppm
- Area to be monitored
- Height to be monitored
- Air velocity
- Sensitivity
- Application temperature
- Ambient temperature
- -25 °C ... 70 °C
- Storage temperature
- Air humidity
- < 95 % (non-condensing)
- Air humidity
- Type of protection
- IP 21C, IP 65 with CWR and accessories
- Protection class
- Ex. protection
- Category
- Housing
- Material
- PC/ABS, UL94-V0
- PC, UL94-V0 (Lens)
- Installation
- Signal Range
- W-2,4-6,7
- Mounting height wall
- 2.4 m
- Room width
- 6,7 m
- Category ceiling
- C-3-9,4 / C-6-8,2
- Mounting height ceiling
- 3 m / 6 m
- Room diameter
- 9,4 m / 8,2 m
- Color
- base red, similar to RAL 3020
- cap: transparent
- Weight
- approx. 164 g
- Weight
- Optisches_Signalbild
- Lebensdauer_optisch
- Drehfrequenz
- Abmessungen
- Content
- Cable length
- m
- Maximum sensor length
- m
- Detector specification
- DIBt approval
- Specification
- EN 54-23 optical signaling device
- Cable diameter
- mm
- Cable entry
- Maximum tube length
- Dimensions
- Ø: 100 mm H: 72 mm
- Ø: 100 mm H: 97 mm (incl. IP base)
- Length
- Declaration of Performance
- 0832-CPR-F0258
- Konformität
Accessories
CWR Base deep IP 65, red
PS188 Base deep, O-Ring
PS189 Base deep, seal
Additional information
Not suitable for use outdoors or in damp areas. Please use therefore the optional bases and accessories (Part No. CWR, PS188, PS189).
Replacement for Part No. 766420, 766422, 766410.
When using the EOL-O 808624 termination element for standard-compliant monitoring of the alarm devices, the optional deep base CWR or CWW offers a larger connection space.
Downloads
