Electronically steerable line source speaker LFI-450 ANA HW

582603.W | Electronically steerable line source speaker LFI-450 ANA HW

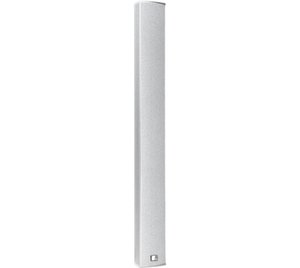

The LFI-450 ANA HW is an active, electronically steerable line source speaker in white.

Its integrated digital 8-channel DSP amplifier is perfectly tuned to the system. It is equipped with 8 x 4" neodymium speakers, which are distinguished by their very long excursion.

The LFI systems are generally installed in cases where conventional methods cannot get you anywhere, because of difficult acoustic conditions, and in projects where excellent speech intelligibility and high sound pressure are required.

The system allows for programming in real time, so it will save a lot of time when setting up.

The system can generate two separate dispersion beams, which can be operated with variable acoustic beam centres.

Furthermore, its important features should be emphasized for system integration as per EN 60849 / DIN VDE 0828.

Linea Focus systems can only be configured with the latest version of Fohhn Audio Soft.

Optionally, depending on the application, various mounting brackets are available.

Part-No.:
582603.W

Technical Data

Rated Power
W
Rated power handling
Transformer power taps
Rated impedance
Kennschalldruck 1W / 1m
Kennschalldruck 1W / 4m
Kennschalldruck 6W / 4m
SPL 1 W / 1 m (Double)
dB
SPL Pmax / 1 m
136 dB
SPL Pmax / 1m (Double)
dB
Sensitivity EN 54-24, 1 W / 1 m
dB
Sensitivity EN 54 (double)
dB
Sensitivity EN 54-24 max (double)
dB
Sensitivity
118 dB
Sensitivity EN 54-24, max 1 m
dB
Transmission range
60 Hz ... 17000 Hz
Sensitivity EN 54-24 1 W / 1 m_comp
Sensitivity EN 54-24, 1 W / 4 m_comp
Sensitivity EN 54-24 6 W / 4 m_comp
Impedance
Ω
Sensitivity
mV
Sensitivity
Dispersion angle
Ambient temperature
Storage temperature
Air humidity
Air humidity
Type of protection
Housing
Aluminium
Material
Color
white, similar to RAL 9016 (Optional all RAL colours)

Weight
Weight
approx. 32 kg

Cut-out size
Connection lead
Dimensions
W: 130 mm H: 4490 mm D: 120 mm


SPL Pmax / 1m
Rated voltage
Output power *8
Approval

Additional information

Fohhn-Net adapter is required to connect to a PC

Optionally, depending on the application, various mounting brackets

Optionally, other colors are available on request (powder coating)

Optionally, other colors for wall mounts are available on request.
