Features
- Reversible door hinge
- Completely detachable

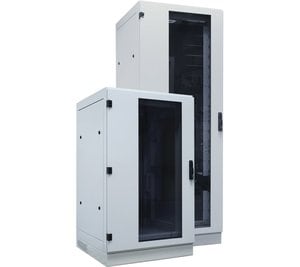

Upright cabinet without hinged frame 26 HU (incl. assembly)
Upright cabinet without hinged frame 26 HU but including assembly of voice alarm components and smaller accessories.
- Part-No.:
- 584910.R
- Approval:
- Part of EN 54-16 approval
Technical Data
- Maximum weight load
- kg
- Maximale Belastung
- 400 kg
- Mounting
- Ambient temperature
- Storage temperature
- Air humidity
- Air humidity
- Type of protection
- Housing
- Material
- Color
- gray, similar to RAL 7035
- Load capacity
- kg
- Weight
- Weight
- Installation depth
- mm
- Dimensions
Accessories
584923 Sliding rail, set 550 mm for 800 mm upright cabinets
Additional information
Cables not included in price and must be ordered separately!
Scope of delivery
Base frame with depth-adjustable 19"level on the front and rear side, prefabricated with a 105 mm clearance to the doors
Front door with a 4 mm ESG pane (parsol gray)
Rear door steel plate
Door lock with a swivel lever for 40 mm PHZ and multi point locking
Removable side walls, lockable
Three-part base plate, passively ventilated
Roof with a brush strip and cover plate, prefabricated for the fan assembly
Cabinet completely grounded
