Features
- Reversible door hinge
- Completely detachable

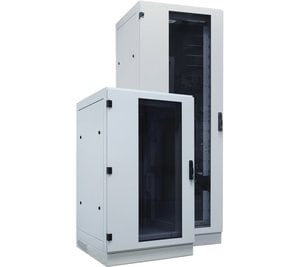

Upright cabinet without hinged frame 26 HU
Due to customized preparation and quick installation this cabinet solution meets the demand for fast implementation of a network structure.
- Part-No.:
- 584910
- Approval:
- Part of EN 54-16 approval
Technical Data
- Maximum weight load
- kg
- Maximale Belastung
- 400 kg
- Mounting
- Ambient temperature
- Storage temperature
- Air humidity
- Air humidity
- Type of protection
- Housing
- Material
- Color
- gray, similar to RAL 7035
- Load capacity
- kg
- Weight
- Weight
- approx. 120 kg
- Installation depth
- mm
- Dimensions
- W: 800 mm H: 1400 mm D: 800 mm (H: incl. 100 mm base
Accessories
584923 Sliding rail, set 550 mm for 800 mm upright cabinets
Scope of delivery
Base frame with depth-adjustable 19"level on the front and rear side, prefabricated with a 105 mm clearance to the doors
Front door with a 4 mm ESG pane (parsol gray)
Rear door steel plate
Door lock with a swivel lever for 40 mm PHZ and multi point locking
Removable side walls, lockable
Three-part base plate, passively ventilated
Roof with a brush strip and cover plate, prefabricated for the fan assembly
Cabinet completely grounded
