Features
- Completely detachable
- Pivoting frame and door with little effort in hinge is changeable

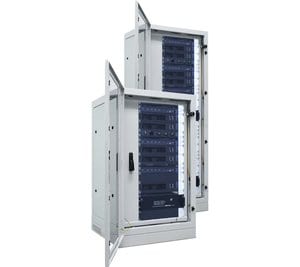

Upright cabinet with hinged frame 40 HU - 600 mm deep (incl. assembly)
Upright cabinet with hinged frame 40 HU - 600 mm deep, but including assembly of voice alarm components and smaller accessories.
- Part-No.:
- 584903.R
- Approval:
- Part of EN 54-16 approval
Technical Data
- Maximum weight load
- 250 kg
- Maximale Belastung
- kg
- Mounting
- Ambient temperature
- Storage temperature
- Air humidity
- Air humidity
- Type of protection
- Housing
- Material
- Color
- gray, similar to RAL 7035
- Load capacity
- kg
- Weight
- Weight
- Installation depth
- mm
- Dimensions
Accessories
584921 Angled Sliding Rail (set) 250 mm deep, for hinged frames
584922 Cable Clamping Rail Set, 2 HU
Additional information
Cables not included in price and must be ordered separately!
Scope of delivery
Pivot frame
Welded 100 mm plinth, with holes for floor mounting and cable entry
Rear and side walls detachable, on request, and ventilated
Three-part base plate
Roof with a brush strip and cover plate
Front door with a 4 mm ESG pane
Door lock with a swivel lever for 40 mm PHZ and multi point locking
Cabinet completely grounded
Screws set M6 (VE 50 set)
