Features
- Completely detachable
- Pivoting frame and door with little effort in hinge is changeable

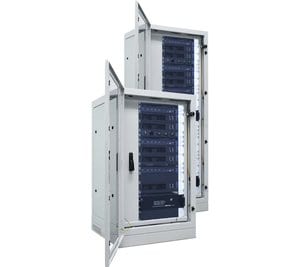

Upright cabinet with hinged frame 40 HU - 600 mm deep
Stable and practical 19" swivel frame cabinet for easy installation and easy access during servicing. In rooms where the air is dusty it is mandatory to use cabinet air filters such like Part No. 584948 or 584949.
- Part-No.:
- 584903
- Approval:
- Part of EN 54-16 approval
Technical Data
- Maximum weight load
- 250 kg
- Maximale Belastung
- kg
- Mounting
- Ambient temperature
- Storage temperature
- Air humidity
- Air humidity
- Type of protection
- Housing
- Material
- Color
- gray, similar to RAL 7035
- Load capacity
- kg
- Weight
- Weight
- approx. 160 kg
- Installation depth
- 450 mm
- Dimensions
- W: 800 mm H: 2100 mm D: 600 mm (H: incl. 100 mm base)
Accessories
584921 Angled Sliding Rail (set) 250 mm deep, for hinged frames
584922 Cable Clamping Rail Set, 2 HU
Scope of delivery
Pivot frame
Welded 100 mm plinth, with holes for floor mounting and cable entry
Rear and side walls detachable, on request, and ventilated
Three-part base plate
Roof with a brush strip and cover plate
Front door with a 4 mm ESG pane
Door lock with a swivel lever for 40 mm PHZ and multi point locking
Cabinet completely grounded
Screws set M6 (VE 50 set)
